Plot energy-balance closure diagnostics — plot_energy_balance

Visualizes output from energy_balance_closure(). This is a plotting helper for diagnostics, not a flux model. It does not compute new turbulent fluxes and does not alter the diagnostic object.

Usage

plot_energy_balance_closure(
  x,
  type = c("open_terms", "closure_check", "ratio"),
  methods = NULL,
  layout = c("facets", "combined"),
  ylim = NULL,
  main = NULL,
  cex = 0.85,
  lwd = 1.2,
  pch = 16,
  ...
)

Arguments

x: Output from energy_balance_closure().
type: Plot type. "open_terms" plots open, residualized, or diagnostically unresolved terms. "closure_check" plots available_energy - sensible - latent for paired methods. "ratio" plots finite closure ratios for paired methods. "residual" is deprecated and maps to "closure_check".
methods: Optional character vector of methods to include.
layout: Plot layout. "facets" draws one method per panel. "combined" draws all selected methods in one panel.
ylim: Optional y-axis limits. If NULL, faceted plots use separate y-scales per panel and combined plots use the range of all plotted values.
main: Optional plot title. For faceted plots, this is used as the outer title.
cex: Character expansion passed to base plotting functions.
lwd: Line width passed to base plotting functions.
pch: Point symbol passed to base plotting functions.
...: Additional arguments passed to base plotting functions.

Value

Invisibly returns x.

Details

The default layout = "facets" is recommended for vignettes because it draws one panel per method and avoids overplotting. The optional layout = "combined" draws all selected methods in one panel.

The default type = "open_terms" plots terms that are open, residualized, or diagnostically unresolved. For Bulk-Residual this is the residual latent heat term, for Penman it is the unresolved complement, and for Monin/Profile it is the diagnostic energy-balance residual. Priestley-Taylor and Bowen are omitted from this plot type because they partition available energy and do not return an explicit open term.

The type = "closure_check" plot is a technical balance check for paired sensible/latent heat methods. It shows A - H - LE, where A = rad_bal - soil_flux. Priestley-Taylor, Bulk-Residual and Bowen are expected to be close to zero by construction when their values are finite. Bulk-Residual can still have an open/residualized latent term in open_terms; its closure_check is near zero because that latent term closes the balance algebraically. Monin/Profile residuals are diagnostic. Penman is excluded because it has no paired sensible heat output.

The type = "ratio" plot shows (sensible + latent) / available energy for paired methods. Penman is excluded and rows marked low_available_energy are omitted because ratios are unstable near zero available energy.

The deprecated type = "residual" is mapped to type = "closure_check" with a warning.

The ylim argument can be used for zoomed diagnostic views. A zoomed ratio plot must not be read as data removal; it only makes the range around formal closure readable.

Examples

ws <- structure(
  list(
    datetime = as.POSIXct(
      c("2023-06-30 12:00", "2023-06-30 12:30"),
      tz = "UTC"
    ),
    rad_bal = c(400, 300),
    soil_flux = c(60, 40),
    sensible_bulk = c(120, 80),
    latent_bulk_residual = c(220, 180),
    latent_penman = c(200, 160),
    sensible_monin = c(100, 100),
    latent_monin = c(180, 130)
  ),
  class = "weather_station"
)

closure <- energy_balance_closure(
  ws,
  methods = c("bulk_residual", "penman", "monin")
)

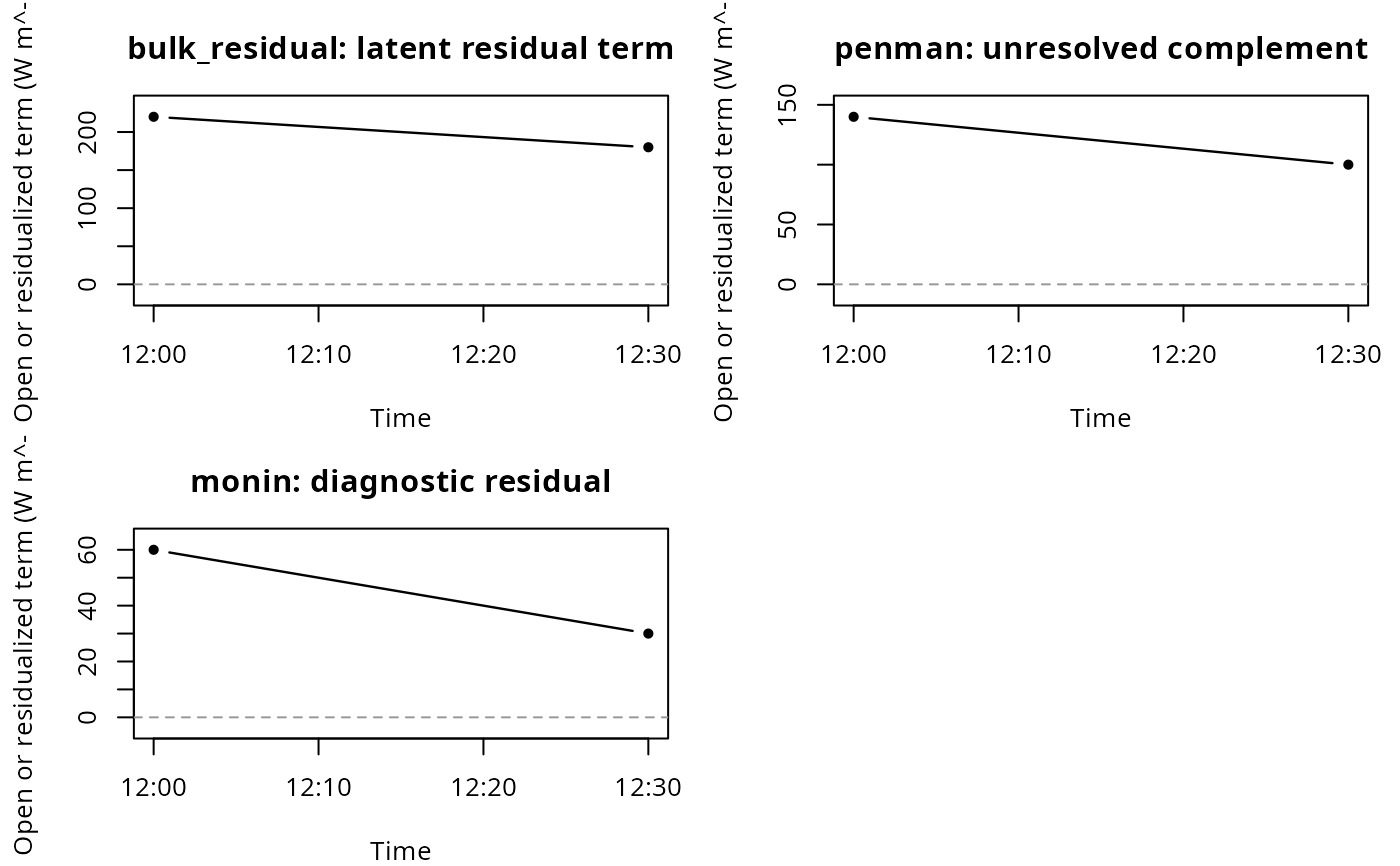

plot_energy_balance_closure(closure, type = "open_terms")

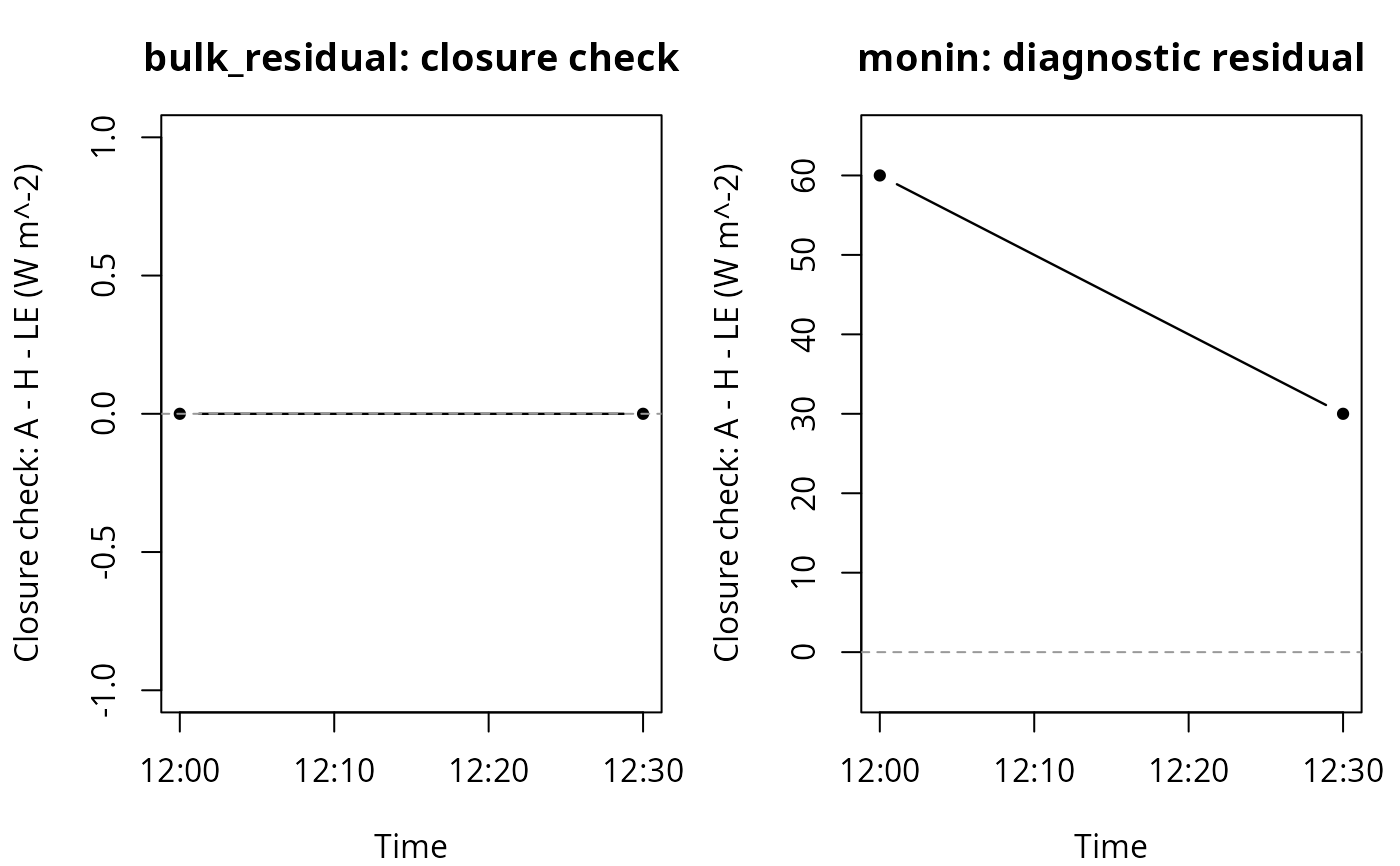

plot_energy_balance_closure(closure, type = "closure_check")

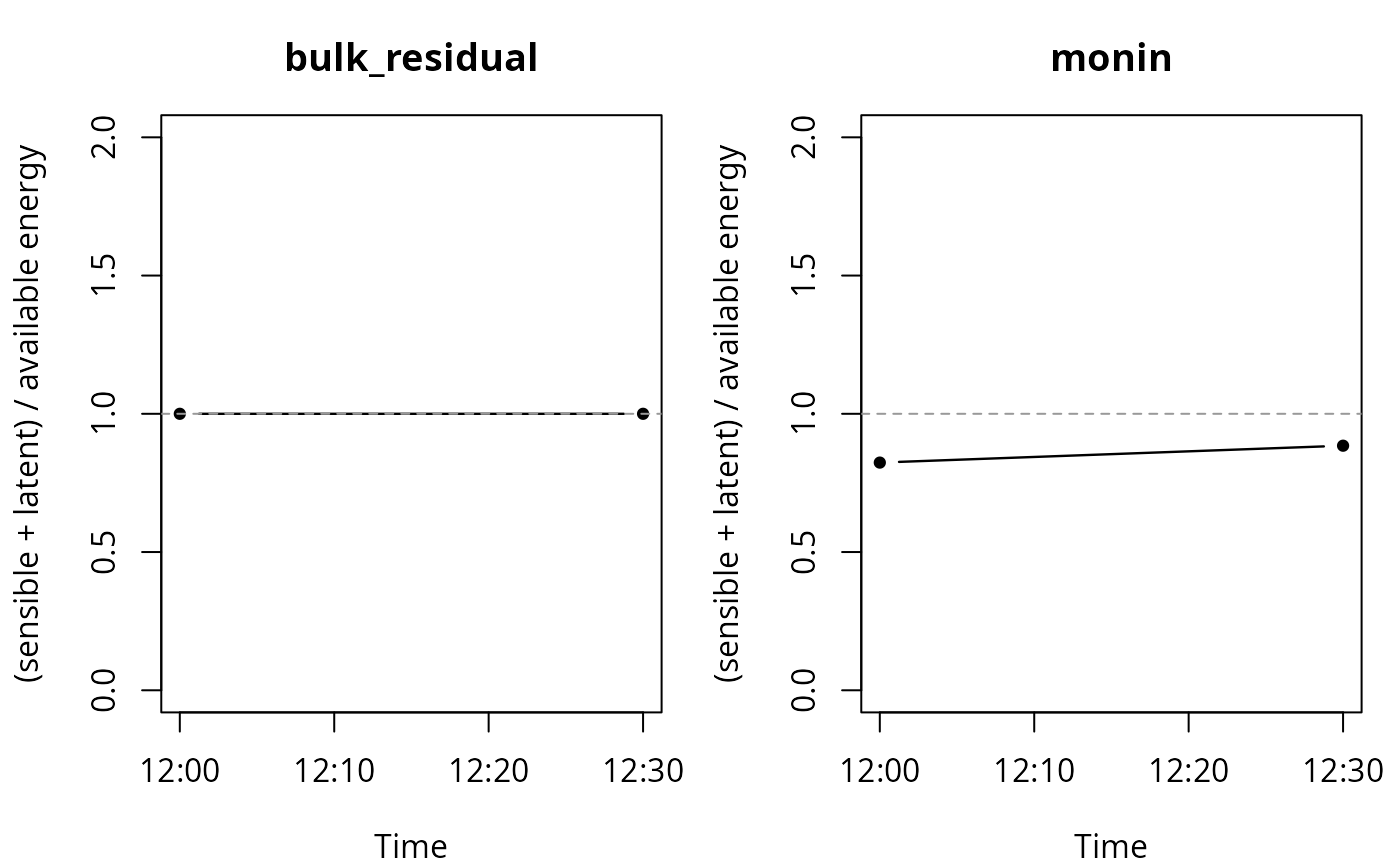

plot_energy_balance_closure(closure, type = "ratio", ylim = c(0, 2))
